Tri

Booster Sets with 3 CMH or CMV

Characteristics

40 - 103m
Max. head

21.6 - 66m³/h
Max. flow

0.9 - 4kW
Motor power

G 1 ½ - 2 F
Discharge size

Application

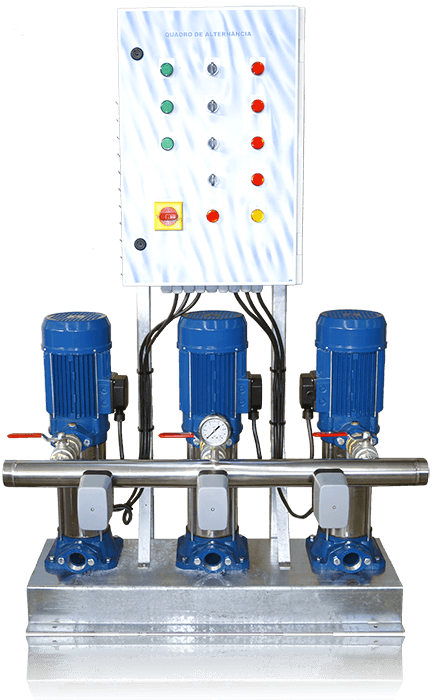

TRI series are three pump (CMH or CMV) pressure boosting sets supplied preassembled and ready to install. The sets are designed so that the pumps operate automatically in succession as the demand for water increases. This results in significant energy savings as the second pump only runs at times of high demand. The lead pump is alternated automatically by the control box.

Installation

The pump should be installed in an enclosed environment or sheltered from inclement weather.

Materials

This sets are preassembled with collector stainless steel discharge (suction as suplement), valves and brass valves, stainless steel pressure gauge in glycerine bath, 3 pressure pumps (CMH or CMV), galvanized steel frame and bracket, an electrical control and protection.

Pumped liquid

Clean water.
Max. liquid temperature: 35°C.

Motor

Externally ventilated. Mechanical seal (carbon-graphite). Protection IP44. Class F insulation.

Features

Max. starts/hour: 30

Performance

Specification

Serie Kw Power Capacitor Passage DNC QMax HMax Palette
