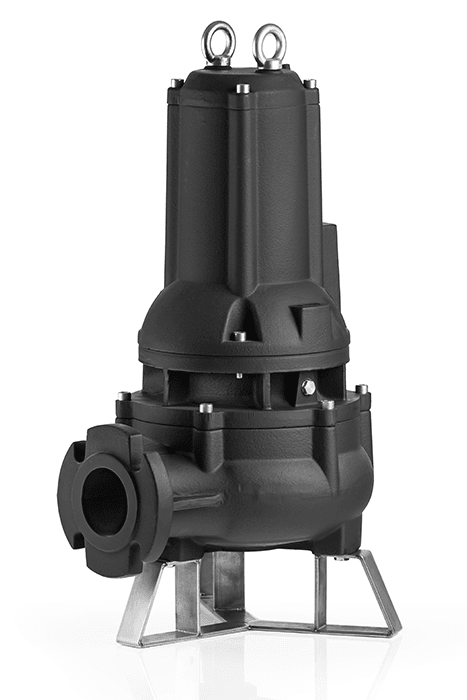

4PMC

Submersible Pumps to untreated wastewater (1450Rpm)

Characteristics

16m
Max. head

72m³/h
Max. flow

2.2kW
Motor power

80
Discharge size

Application

The electric pumps "4PMC" are particularly suitable for treatment of wastewater, industrial process water and raw sewage does not treated in municipal applications, public and industrial. The single-channel impeller permits passage of solids in the pump up to 80mm, reducing the risk of clogging.

Installation

Single-stage submersible pumps in close-coupled design for permanent or transportable usage.

Materials

Double seals, lip seals and reinforced SIC-SIC mechanical seal. Motor casing, pump body and open impeller in cast iron, 420 stainless steel shaft

Pumped liquid

Clear water and drainage water, sewage containing soft solids. Max. liquid temperature: 35°C.

Motor

Fully submersible, pressure tight electric motor. Stainless steel motor- and pump housing. Insulation class F. Motor protection IP 68. Thermal sensors imbedded in the motor winding.

Features

Power cable: 10 m neoprene.
Immersion depth of 10 m.
Ideal for installation with guide rail.

Performance

Specification

Serie Kw Power Capacitor Passage DNC QMax HMax Palette
